Description | Size | Colour |
---|---|---|
Circular Junction Box | 20mm | 10/100 Pack/CTN Qty |
25mm | 10/100 Pack/CTN Qty | |
32mm | 5/10 Pack/CTN Qty |
Description | Thickness | Size | Packaging |
---|---|---|---|
1 Gang Knock-out box (K.O) | 1.1 -1.2mm 0.8 mm | 75mm (W) X 75mm (L) X 35mm (H) | 20/200 Pack/CTN Qty |
Description | Thickness | Size | Packaging |
---|---|---|---|
2 Gang Knock-out box (K.O) | 1.1 -1.2mm 0.8 mm | 135mm (W) X 75mm (L) X 35mm (H) | 10/100 Pack/CTN Qty |
Description | Thickness | Size | Packaging |
---|---|---|---|
1 Gang Knock-out box (K.O)w/ fishtails | 1.6mm | 75mm (W) X 75mm (L) X 35mm (H) | 20/200 Pack/CTN Qty |
Description | Thickness | Size | Packaging |
---|---|---|---|
2 Gang Knock-out box (K.O)w/ fishtails | 1.6mm | 135mm (W) X 75mm (L) X 35mm (H) | 10/100 Pack/CTN Qty |
Steel Conduit Accessories is part of an enclosure provided with means for fixing a cover, cover plate, accessory, etc, and intended to receive socket outlets with portion of the side or back of a box which can readily be removed when required.
DOME COVER /LID
Material: Malleable Iron
Finishing: Pre-Galvanized/Hot Dipped Galvanized
Description | Size | Packaging |
---|---|---|
Dome Cover/Lid | 20mm, 25mm, 32mm | 20/200 Pack/CTN Qty |
REDUCER
Material: Brass/Alloy
Finishing: Pre-Galvanized
Description | Size | Packaging |
---|---|---|
Reducer | 25mm x 20mm | 50/100 Pack/CTN Qty |
32mm x 25mm | 20/500 Pack/CTN Qty |
Brass Male Bush – Short
Material: Brass
Finishing: Self-Colour
Description | Size | Packaging |
---|---|---|
Brass Male Bush – Short | 20mm, 25mm | 50/100 Pack/CTN Qty |
32mm | 20/500 Pack/CTN Qty |
Brass Male Bush – Long
Material: Brass
Finishing: Self-Colour
Description | Size | Packaging |
---|---|---|
Brass Male Bush – Long | 20mm, 25mm | 50/100 Pack/CTN Qty |
32mm | 20/500 Pack/CTN Qty |
Brass Adaptor C/W Locknut
Material: Brass
Finishing: Self-Colour
Description | Size | Packaging |
---|---|---|
Brass Adaptor C/W Locknut | 20mm x 20mm | 50/100 Pack/CTN Qty |
25mm x 25mm | 20/100 Pack/CTN Qty |
HEX LOCKNUT
Material: Alloy
Finishing: Pre-Galvanized
Description | Size | Packaging |
---|---|---|
Hex Locknut | 20mm, 25mm, 32mm | 200/4000 Pack/CTN Qty |
Steel Conduit Accessories is part of an enclosure provided with means for fixing a cover, cover plate, accessory, etc, and intended to receive socket outlets with portion of the side or back of a box which can readily be removed when required.
BOX LID
Material: Steel
Finishing: Pre-Galvanized/Hot-Dip galvanized
Description | Size | Packaging |
---|---|---|
Circular Box Lid | 20mm, 25mm, 32mm | 100/1000 Pack/CTN Qty |
SPACER BAR SADDLE
Material: Steel
Finishing: Pre-Galvanized/Hot-Dip galvanized
Description | Size | Packaging |
---|---|---|
Space Bar Saddle | 20mm, 25mm, 32mm | 100/1000 Pack/CTN Qty |
HALF SADDLE
Material: Steel
Finishing: Pre-Galvanized/Hot-Dip galvanized
Description | Size | Packaging |
---|---|---|
Half Saddle | 20mm, 25mm, 32mm | 100/1000 Pack/CTN Qty |
COUPLING SOCKET
Material: Steel
Finishing: Pre-Galvanized/Hot-Dip galvanized
Description | Size | Packaging |
---|---|---|
Coupling Socket | 20mm, 25mm, 32mm | 100/1000 Pack/CTN Qty |
SOCKET JOINT/SCREWLESS COUPLER
Material: Steel
Finishing: Pre-Galvanized/Hot-Dip galvanized
Description | Size | Packaging |
---|---|---|
Socket Joint | 20mm, 25mm, 32mm | 100/1000 Pack/CTN Qty |
Description | Size | Colour |
---|---|---|
junction Box | 16mm | White/Black |
20mm | ||
25mm | ||
32mm | ||
Extension Ring | 38mm | |
50mm | ||
Cover Lid | - |
Description | Colour |
---|---|
Mounting Box | White/Black |
Blank Plate |
Description | Size | Colour |
---|---|---|

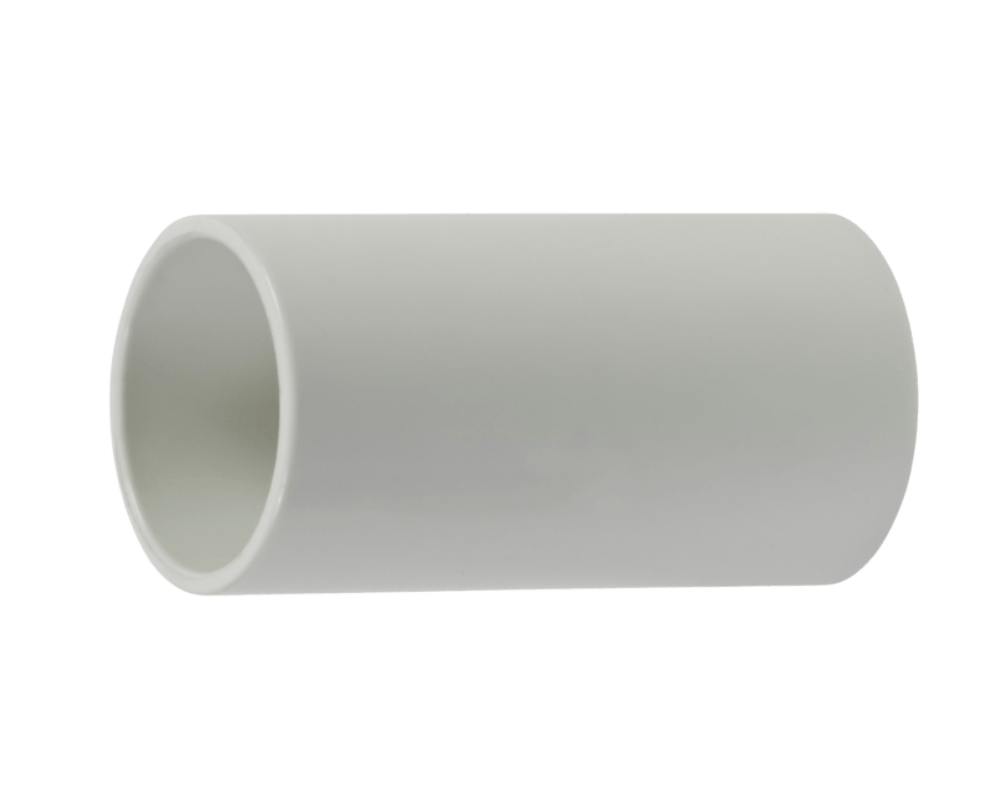

Socket | 20mm | White/Black |
Female Adapter | ||
Space Saddle | ||
Strap Saddle | ||
Dome Cover |
Size | Colour |
---|---|
20mm | White/Black |
25mm | |
32mm |
Material | Finish |
---|---|
Rubber | Self-colour (Black) |
Description | A | B | C |
---|---|---|---|
CJ-30 | 30 | 9 | 5 |
CJ-40 | 40 | 15 | 11 |
CJ-50 | 50 | 15 | 15 |
Description | Length |
---|---|
CJ-30 | 3.0m |
CJ-40 | 3.0m |
CJ-50 | 3.0m |
L-STRIP | 3.0m |
Control Joint / L-Strip | |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 56.3 |
Mean Deflection Temperature (°C) | 61.5 |
Mean Vicat Softening Temperature (°C) | 80.7 |
Chemical Resistance | No colour changed and visual defects |
Technical Specifications | Self-Adhesive Fibermesh |
---|---|
Width |
50mm – 75m 100mm – 50m |
Weave | Leno |
Warp | 8nos/in |
Weft | 8nos/in |
Weight | 60g/m2 |
Tension Load | 147.2N/25mm |
Description | Packaging |
---|---|
100mmx50m | 18rolls/box |
50mmx75m | 16rolls/box |
Technical Specification | CJT-11G/TD-11 |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 56.3 |
Mean Deflection Temperature (°C) | 61.5 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
DCJ-6 G/W/R | 2.45m |
DCJ-12 G/W/R | 2.45m |
Description | A | B | C |
---|---|---|---|
ZB-09 | 10 | 12 | 20 |
ZB-12 | 13.5 | 12 | 20 |
Technical Specification | (PVC) |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Thickness(mm) | 0.4 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
ZB-09 G/W/R | 2.45m |
ZB-12 G/W/R | 2.45m |
90º internal corners are usually the most difficult alignment aspect during wall plastering. Calaba has developed the Inner Bead to counter this problem. The Inner Bead is designed to give a perfect 90º straight and sharp internal corner, regardless of whether the walls meet perfectly at the corner. Due to its self-aligning characteristic, it makes plastering of internal corners easier and more efficient, saving both time and money.
Technical Specification | (PVC) |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 66.8 |
Mean Vicat Softening Temperature (°C) | 66.8 |
Thickness(mm) | 0.4 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
Angle Bead | 2.45m |
IB-7 G/W/R | 3.0m / 2.6m |
Apart from the conventional round shaped PVC tile trim, K.U.S has newly developed the PVC square and our first ever stainless steel wrapped PVC tile trims, which come in grade 304 and 316 in round and square shapes. The stainless steel surface enhances the perimeter of the tile wall, providing a stylish and elegant trimming finish.
Apart from the conventional round shaped PVC tile trim, K.U.S has newly developed the PVC square and our first ever stainless steel wrapped PVC tile trims, which come in grade 304 and 316 in round and square shapes. The stainless steel surface enhances the perimeter of the tile wall, providing a stylish and elegant trimming finish.
Description | A | B | C |
---|---|---|---|
TT-09 (SS) | 9 | 15 | 28 |
TT-12 (SS) | 12 | 15 | 28 |
Stainless Steel | |
---|---|
Type | G304/316 |
Finish | BA |
Tensile Strength (MPa) | 520 |
Elongation (%) | 40 |
Hardness (Hv) | 220 |
Thickness(mm) | 0.4 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
Stainless Steel Round 12mm | 2.5m |
Stainless Steel Square 9mm | 2.5m |
Description | A | B | C | D |
---|---|---|---|---|
TT-09 (A) | 10 | 10 | 12 | 12 |
TT-12 (A) | 11 | 12 | 18 | 31 |
PS-12 | 11 | 12 | 18 | 31 |
Technical Specification | (PVC) |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Thickness(mm) | 0.4 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
TT-12 (A) 12mm | 2.45m |
TT-09 (A) 12mm | 2.45m |
TT Square 9mm | 2.45m |
Technical Specification | (Stainless Steel) | (Brass) | (PVC) |
---|---|---|---|
Type | G304/316 | C2600 | - |
Finish | BA | 1/2 H | - |
Tensile Strength (MPa) | 520 | 370 | - |
Thickness (mm) | 0.4 | 0.4 | - |
Elongation (%) | 40 | 30 | - |
Hardness (Hv) | 220 | 105 | - |
Mean Tensile Strength (MPa) | - | - | 15.7 |
Mean Flexural Strength @ 5% Strain (MPa) | - | - | 56.3 |
Mean Deflection Temperature (°C) | - | - | 61.5 |
Mean Vicat Softening Temperature (°C) | - | - | 80.9 |
Chemical Resistance | No colour changed and visual defects | No colour changed and visual defects | No colour changed and visual defects |
Technical Specification | Length |
---|---|
CJS-25 (G304/G316) | 2.0m |
CJS-25 (C2600) | 2.0m |
Technical Specification | CJT-11G/TD-11 |
---|---|
Mean Tensile Strength (MPa) | 25.7 |
Mean Flexural Strength @ 5% Strain (MPa) | 56.3 |
Mean Deflection Temperature (°C) | 61.5 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Item Description | Length |
---|---|
CJT-11 | 3.0m |
TD-11 | 3.0m |
Description | A | B | C |
---|---|---|---|
CTS-1.0 | 20.5 | 20.5 | 1.0 |
CTS-1.5 | 20.5 | 20.5 | 1.5 |
CTS-2.0 | 20.5 | 20.5 | 2.0 |
Description | Dimension |
---|---|
A-Shaped | (Refer to drawing above) |
The CRL series corner bead can perform multiple functions, with adjustment for angles constrained by narrow corners, walls with acute and obtuse angles and curves for most construction radius.
Description | A | B | C |
---|---|---|---|
CRV-1 | 1 | 20 | 20 |
CRV-2 | 2 | 25 | 20 |
CRV-3 | 3 | 20 | 20 |
CRV-3s | 4 | 15 | 28 |
CRV-4 | 4 | 20 | 20 |
CRV-4s | 5 | 20 | 20 |
CRV-10 | 10 | 18 | 18 |
Technical Specification | Drip Line |
---|---|
Mean Tensile Strength (MPa) | 27.2 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Length | |
---|---|
CRV-1 G/W/R | 2.0m |
CRV-2 G/W/R | 2.2m |
CRV-3G/W/R | 2.2m |
CRV-3s G/W/R | 2.0m |
CRV-4 G/W/R | 2.0m |
CRV-4s G/W/R | 2.0m |
CRV-10 G/W/R | 2.0m |
CRV-2S G/W/R | 2.2m |
Technical Specification | Inner Bead |
---|---|
Mean Tensile Strength (MPa) | 27.2 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Item Description | Length |
---|---|
IB-7 G/W/R | 3.0m |
Description | A | B |
---|---|---|
DL-1310 | 13 | 20 |
DL-2010 | 20 | 25 |
Technical Specification | Drip Line |
---|---|
Mean Tensile Strength (MPa) | 27.2 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
DL-1310 | 2.0m |
DL-2010 | 2.0m |
Since Groove Joints are normally used in areas which are exposed directly to sunlight, we have added Benzotriazole, an ultra violet (UV) resistant chemical additive that gives protection from discolouration.
GV – Series | A | B | C | D |
---|---|---|---|---|
GV-10 | 6 | 10 | 14 | 4 |
GV-15 | 10 | 15 | 19 | 5 |
GV-20 | 10 | 20 | 25 | 11 |
GV-30 | 10 | 30 | 35 | 21 |
GU – Series | A | B | C |
---|---|---|---|
GU-0905 | 5 | 9 | 18.5 |
GU-1609 | 9 | 16 | 27 |
GU-2010 | 10 | 20 | 30 |
GU-5010 | 10 | 50 | 63 |
Technical Specification | Groove Joint |
---|---|
Mean Tensile Strength (MPa) | 26.2 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.9 |
Mean Deflection Temperature (°C) | 60.0 |
Mean Vicat Softening Temperature (°C) | 79.5 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
GV-10 | 2.0 m |
GV-15 | |
GV-20 | |
GV-30 | |
GU-0905 | |
GU-1609 | |
GU-2010 | |
GU-5010 |
PLASTER STOP is able to terminate plaster or stucco works. Calaba’s series of Plaster Stops includes 6mm, 10mm, 12mm, 15mm and 35mm to create skirting along the wall, grooves on the ceiling, window and door jambs, as well as addressing the juncture of dissimilar materials.
The specially designed L-shape angle edge trims (without back flange) are to provide better alignment to the intersections during installation and the edge avoids the occurrence of cracks in the wall . The vinyl is not fire hazardous, and does not support combustion after a flame source is removed. Vinyl products also solve related problems such as static electricity, electrolysis, rust, oxidation, and excessive dents, kinks or damage in transit or on the job site.
The specially designed L-shape angle edge trims (without back flange) are to provide better alignment to the intersections during installation and the edge avoids the occurrence of cracks in the wall . The vinyl is not fire hazardous, and does not support combustion after a flame source is removed. Vinyl products also solve related problems such as static electricity, electrolysis, rust, oxidation, and excessive dents, kinks or damage in transit or on the job site.
Description | A | B | C | D |
---|---|---|---|---|
PS-6 | 6 | 6 | 11 | 17 |
PS-10 | 10 | 10 | 12 | 12 |
PS-12 | 11 | 12 | 18 | 31 |
PS-15 | 15 | 15 | 18 | 35 |
PS-35 | 15 | 35 | 20 | 55 |
Plaster Stop | |
---|---|
Mean Tensile Strength (MPa) | 27.2 |
Mean Flexural Strength @ 5% Strain (MPa) | 66.8 |
Mean Deflection Temperature (°C) | 60.1 |
Mean Vicat Softening Temperature (°C) | 80.9 |
Chemical Resistance | No colour changed and visual defects |
Description | Length |
---|---|
PS-6 G/W/R | 2.45m |
PS-10 G/W/R | 2.45m |
PS-12 G/W/R | 2.45m |
PS-15 G/W/R | 2.45m |
PS-35 G/W/R | 2.45m |
Description | Packaging |
---|---|
Plastor Adaptor | 50pcs/box |
Technical Specification | Plastor Adaptor |
---|---|
Tensile Strength (kg/cm | 270 |
Elongation (%) | 55 |
Heat Distortion Temperature (°C) | 84 |
Melt Index (g/10min) | 3.1 |
Izod Impact Strength (kg.cm/cm) | 14.3 |
finish | thickness (mm) | Tensile Strength (N/mm2) | Elongation (%) | Zinc Coating (g/m2) |
---|---|---|---|---|
Galvanised | 0.3 | 350 | 35 | 100 |

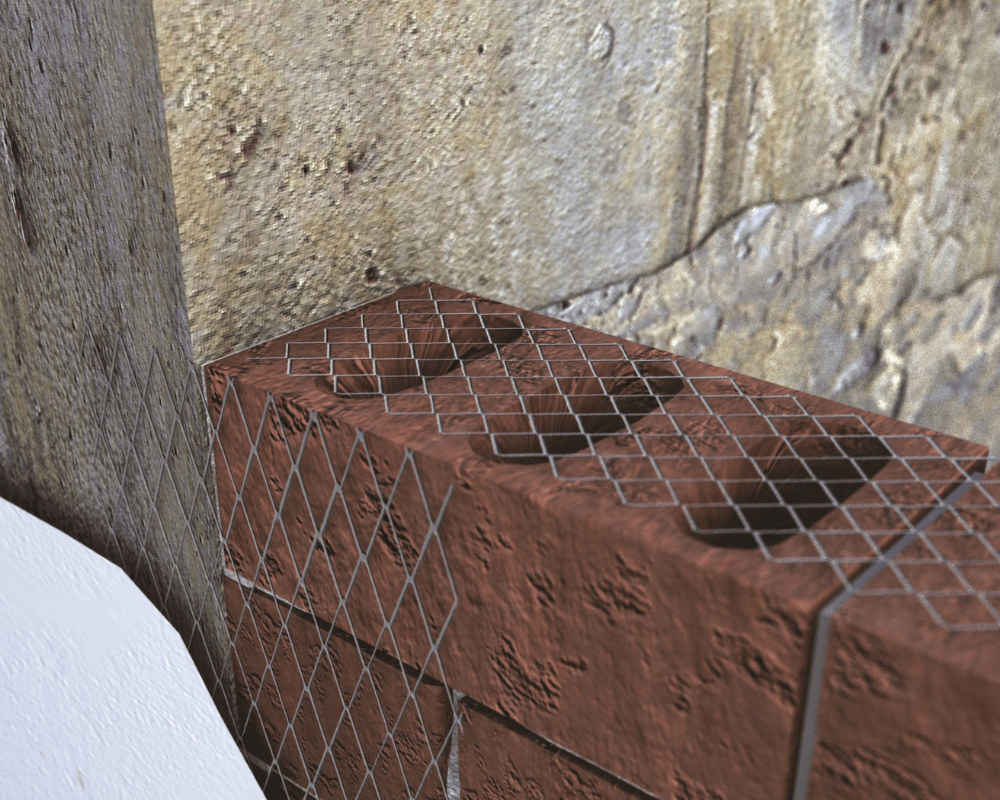

Description | width | length | A | B |
---|---|---|---|---|
BPM-65 | 65mm | 1200mm | 38mm | 16mm |
BPM-100 | 100mm | 1200mm | 38mm | 16mm |
BPM-150 | 150mm | 1200mm | 38mm | 16mm |
BPM-200 | 200mm | 1200mm | 38mm | 16mm |
BPM-300 | 300mm | 1200mm | 38mm | 16mm |

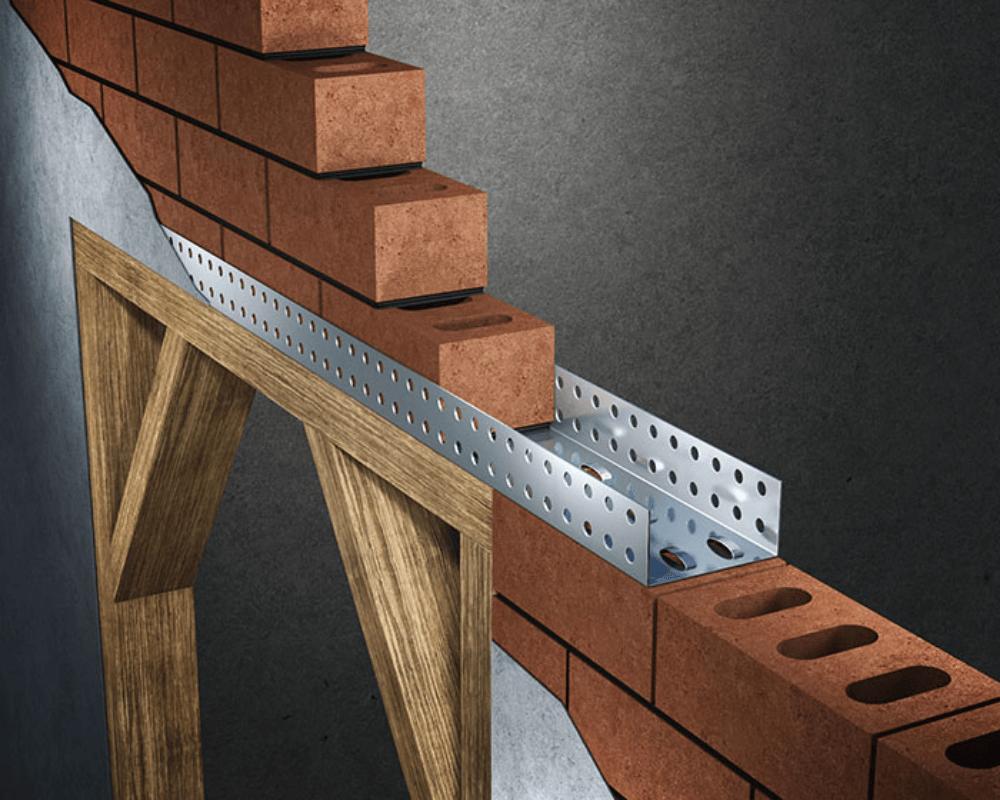

The Calaba lintel provides adequate support for vertical loads above window and door openings, and once it is bedded in place the work can proceed without delay. Steel lintels are lighter than conventional concrete lintels and perforations facilitate plastering.
Technical Specification | CL-100 | UL-103 | UL-103A | UL-103B | UL-103C | UL-103D |
---|---|---|---|---|---|---|
Height (mm) | 25 | 50 | 75 | 75 | 75 | 100 |
Thickness (mm) | 0.8 | 1.6 | 1.6 | 2.0 | 2.6 | 2.6 |
Width (mm) | 90 | 103 | 103 | 103 | 103 | 103 |
Length (mm) | 3000 | 4200 | 4200 | 4200 | 4200 | 4200 |
Preforated shape on flange | NA |
Yield Strength | Tensile Strength (N/mm2) | Elongation (%) | Finishing |
---|---|---|---|
min 195 | 325 | ≥ 33% | Pre- Galvanished |

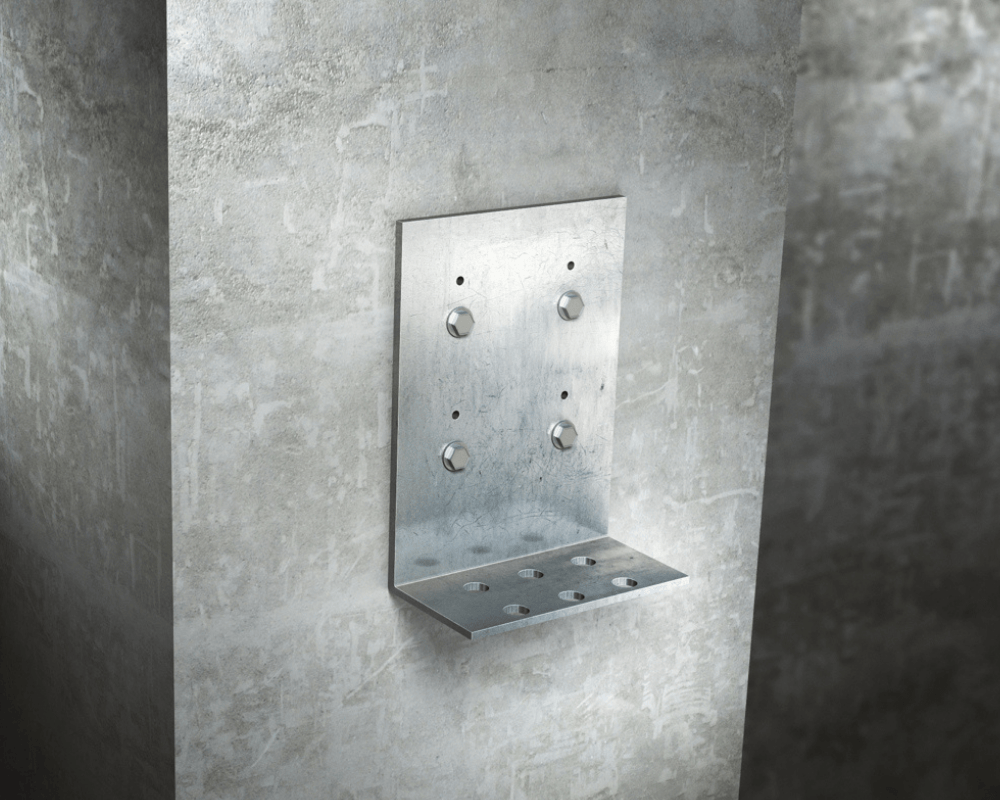

Technical Specification | L-Bracket | HD L-Bracket |
---|---|---|
Finish | Galvanised | |
Thickness (mm) | 3 | 10 |
Minimum tensile strength (N/mm²) | 435 | 435 |
Maximum load @5mm eccentric from vertical plane(kN) | 20.3 | 31.4 |
Elongation (%) | ≥ 26 | ≥ 26 |
Maximum height (mm) of standard brick (100mm) layer above Lintel: | ||||||
---|---|---|---|---|---|---|
Span Width (mm) | Lintel Models | |||||
CL-100 | UL-103 | UL-103A | UL-103B | UL-103C | UL-103D | |
800 | 480 | 1270 | 1840 | 2550 | 3930 | 8850 |
900 | 380 | 1000 | 1450 | 2010 | 3100 | 7000 |
1000 | 310 | 810 | 1180 | 1630 | 2510 | 5670 |
1100 | 270 | 670 | 970 | 1350 | 2080 | 4680 |
1200 | 240 | 560 | 820 | 1130 | 1740 | 3930 |
1300 | 220 | 480 | 690 | 960 | 1490 | 3350 |
1400 | 210 | 410 | 600 | 830 | 1280 | 2890 |
1500 | 180 | 360 | 520 | 720 | 1110 | 2520 |
1600 | - | 310 | 460 | 630 | 980 | 2210 |
1700 | - | 280 | 400 | 560 | 870 | 1960 |
1800 | - | 250 | 360 | 500 | 770 | 1750 |
1900 | - | 220 | 320 | 450 | 690 | 1570 |
2000 | - | 200 | 290 | 400 | 620 | 1410 |
2100 | - | - | - | - | 570 | 1280 |
2200 | - | - | - | - | 520 | 1170 |
2300 | - | - | - | - | 470 | 1070 |
2400 | - | - | - | - | 430 | 980 |
2500 | - | - | - | - | 400 | 900 |
2600 | - | - | - | - | 370 | 830 |
2700 | - | - | - | - | 340 | 770 |
2800 | - | - | - | - | 320 | 720 |
2900 | - | - | - | - | 290 | 670 |
3000 | - | - | - | - | 280 | 630 |
3100 | - | - | - | - | 260 | 590 |
3200 | - | - | - | - | 240 | 550 |
3300 | - | - | - | - | 230 | 520 |
3400 | - | - | - | - | 210 | 490 |
3500 | - | - | - | - | 200 | 460 |
finish | Tensile Strength (N/mm2) | Elongation (%) | Zinc Coating (g/m2) |
---|---|---|---|
Galvanised | 325 | ≥33% | 460 |

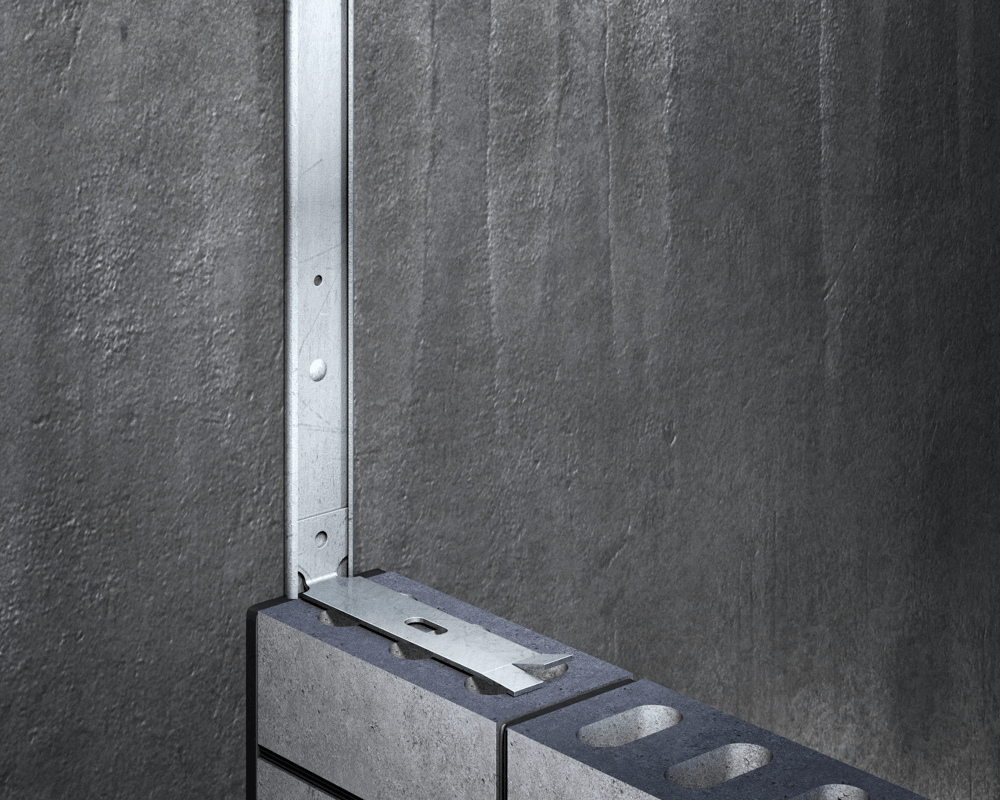

Description | Height | B |
---|---|---|
Bonding Bar | 800 | 75 |
Bonding Bar | 800 | 100 |
Bonding Bar | 800 | 150 |
Bonding Bar | 800 | 200 |
Description | Height | B |
---|---|---|
Bonding Bar | 400 | 75 |
Bonding Bar | 400 | 100 |
Bonding Bar | 400 | 150 |
Bonding Bar | 400 | 300 |
finish | Tensile Strength (N/mm2) | Elongation (%) | Zinc Coating (g/m2) |
---|---|---|---|
Galvanised | 325 | ≥ 33 | 7.8 |
finish | Tensile Strength (N/mm2) | Elongation (%) |
---|---|---|
Self-colour | 435 | ≥ 26 |
